Our Products

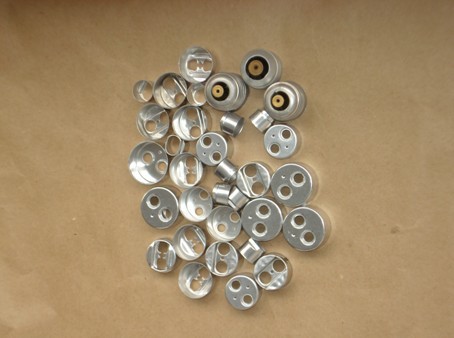

Aluminium strip for lamp cap
Our lampcap materials combines strength and high formability with high resistance to softening in vitriting. Manufactured at modern and well-equipped mills, it can be rolled to very fine tolerances, allowing more caps per tonne of coil and enabling uninterrupted operations of high-speed forming presses.
LAMP BASE MATERIALS
Specification(mm) |
||||
Alloy |
Temper |
Thickness |
Width |
Coil ID |
3004 |
O |
0.25-0.40 |
85-400 |
75 150 |
Remark: Special specifications can be produced according to your requirement.
TECHNICAL DATA SHEET
1 CHEMICAL COMPOSITION:
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Ga |
Ti |
Al |
3004 |
≤0.30 |
≤0.70 |
≤0.25 |
1.0-1.5 |
0.8-1.3 |
≤0.05 |
≤0.05 |
≤0.25 |
- |
≤0.05 |
other |
2 MECHANICAL PROPERTY
Alloy |
Temper |
Thickness(mm) |
Width(mm) |
U.T.S(Mpa) |
Elongation(%) |
3004 |
O |
0.25-0.40 |
85-400 |
155-200 |
≥13 |
3 TOLERANCE
Thickness |
Width |
±0.01mm |
±0.5mm |
Application
A shiny end, in many shapes and colors. Aluminium has exactly the properties that closures need.
In our rolling mills, we produce strip and sheet for heat exchangers which overcome every challenge with ease - be it for heating, ventilation or refrigeration, or to keep mobility well tempered.
Anyone seeking shade from the sun places great emphasis on the effectiveness and quality of the products on offer. Aluminium venetian blinds provide the best possible shade from the sun, heat and from prying eyes.
The barrier properties and heat reflectivity of aluminium foil are widely used in building panels to improve insulation performance in modern building systems.
We supply pure aluminium strip, either with a clear, protective lacquer coating or with a heat-seal lacquer coating, in thicknesses from 0.060 to 0.120 mm.
There is a common misconception that a distribution transformer with copper windings is in some way more efficient, more reliable, or has higher short circuit strength when compared to a transformer with aluminum windings.
An extremely flexible reinforced aluminium foil flexible supply or extract ventilation ducting. Multi-ply aluminium and polyester laminate construction supported by a high tensile steel wire helix. Fire resistant.
Our lampcap materials combines strength and high formability with high resistance to softening in vitriting. Manufactured at modern and well-equipped mills, it can be rolled to very fine tolerances, allowing more caps per tonne of coil and enabling uninterrupted operations of high-speed forming presses..
Download information
For more aluminum strip technical documents, Download free in PDF form !!
